About the WR-90 rectangular waveguide simulation using NumericalAI Project

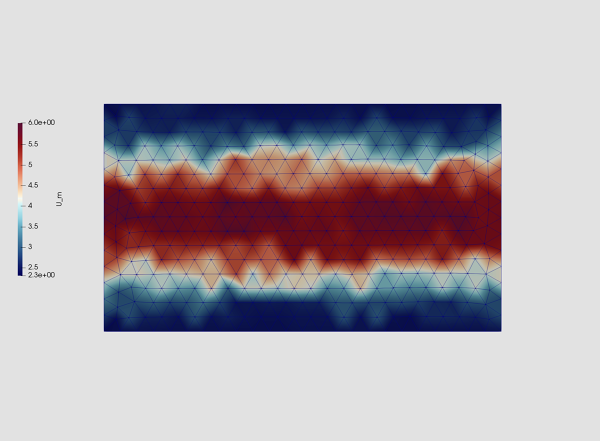

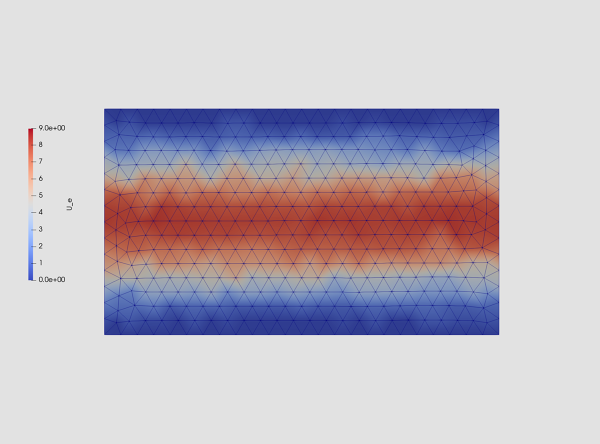

The simulation uses driven wave ports to extract S-parameters from 10-12 GHz. Results show excellent transmission with S21 ≈ 0 dB and very low reflection, with S11 below -44 dB across the sweep. Field and energy plots confirm the expected propagating TE10-like behavior inside the guide. This is directly relevant to microwave test fixtures, feed networks, and satellite communication hardware.
