Air bubble rising in a cylindrical column of water
NoAI: This project, including models, simulations, images, and descriptions, may not be used within datasets, during the developmental process, or as inputs for generative AI tools.
About the Air bubble rising in a cylindrical column of water Project

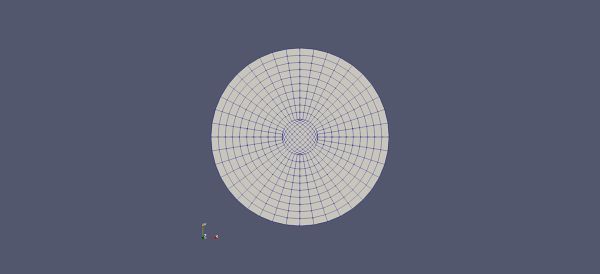

With the interFoam solver in OpenFOAM, a transient simulation of an air bubble rising in a water column is carried out. For this 3D multiphase flow simulation, the volume of fluid approach is used to track the sharp interface between air and water. The setup has a cylinder with a 5mm radius and 30mm height and the water is filled up to 25mm. The top surface of the cylinder is open to the atmosphere and the remaining surfaces are considered walls. A spherical bubble of air with a radius of 2.5 mm is suspended in the water medium at a height of 5mm from the bottom surface of the cylinder. With the blockMesh tool, an O-grid mesh with 40000 hexahedral cells is generated. Simulation is performed for 0.2 seconds.
Statistics
13 Downloads
1 Likes
1798 Views
0 Comments
4 Files
0 MB Project Size
August 6th, 2022 Uploaded
Share
Share Tweet Pin Share Share Post ShareKrishnamurthy Viswanathan
12 Projects
21 Likes
176 Downloads
Tags
Categories
Aerospace Mechanical Engineering Educational Multiphase Flow Bubbles Bubble rising CFD Computational Fluid Dynamics Fluid Dynamics OpenFOAM
