Orion Spacecraft CFD Analysis

Orion-Spacecraft-CFD-Analysis-FetchCFD.JPG size: 0.618943 MB
Orion-Spacecraft-CFD-Analysis-Pressure-Contour-FetchCFD.JPG size: 0.392464 MB
Orion-Spacecraft-CFD-Analysis-Turbulent-Kinetic-Energy-Contour-FetchCFD.JPG size: 0.546712 MB
Orion-Spacecraft-CFD-Analysis-Velocity-Contour-FetchCFD.JPG size: 0.572512 MB
Orion-Spacecraft-CFD-Analysis-FetchCFD-2.JPG size: 0.823845 MB

Download All

<iframe src="https://fetchcfd.com/embed-project/3126-orion-spacecraft-cfd-analysis" width="100%" height="400" frameborder="0" allowfullscreen></iframe>

Reading Mode

Orion spacecraft cfd analysis

NoAI: This model, simulation, images, or project may not be utilized within datasets, during the developmental process, or as inputs for generative AI programs.

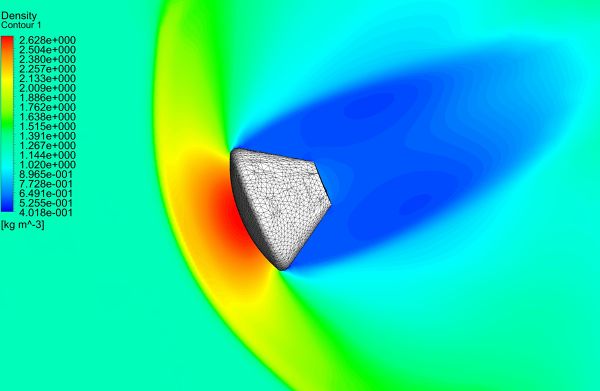

This project is about CFD analysis of flow around Orion Spacecraft. In this fluid simulation, inlet velocity of 500m/s is used. For turbulence modeling SST model is employed. Mesh used in this CFD simulation consists of around 2.3 million elements. CFD software used here is ANSYS CFX. Also check out the 'Refetch of...' this project. Don't forget to share and like 👍 it. Enjoy!!
