About the Fin Heat Sink Conjugate Heat Transfer (CHT) Simulation Project

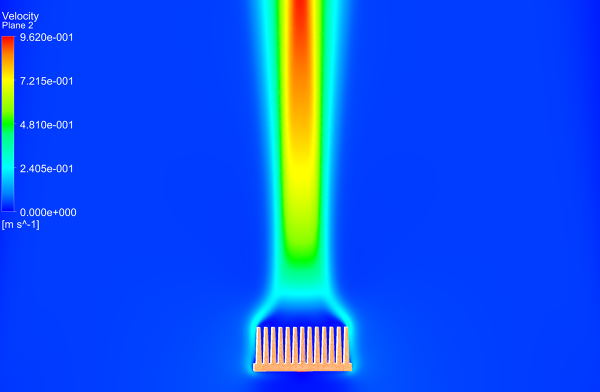

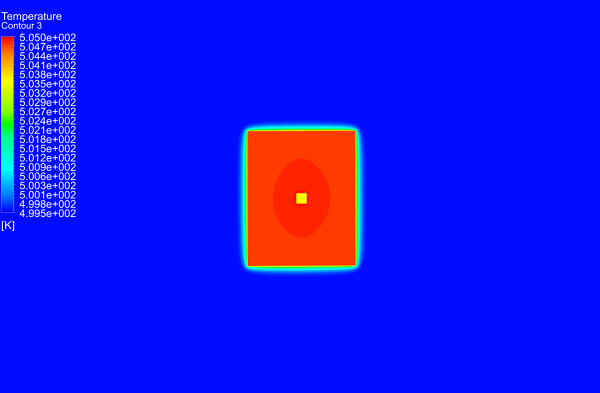

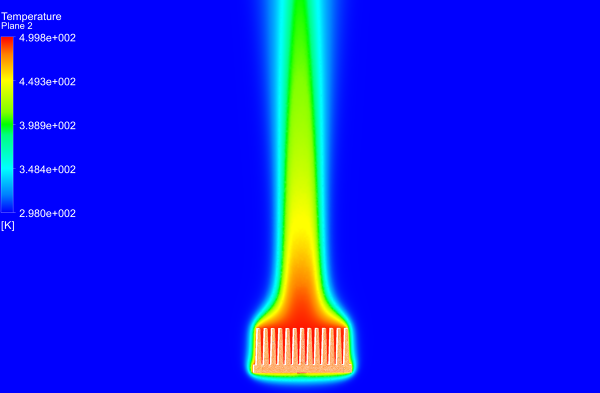

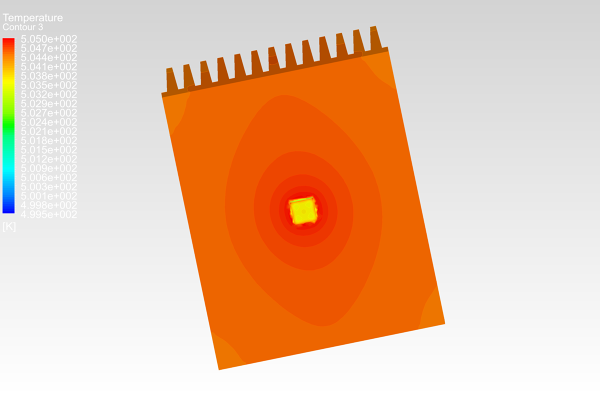

The objective of this simulation was to evaluate the thermal performance and cooling efficiency of a passive aluminum fin heat sink under a 10-watt heat load. The study aimed to predict the maximum junction temperature, analyze the airflow patterns generated by buoyancy-driven natural convection, and visualize the thermal spreading resistance through the heat sink base.
